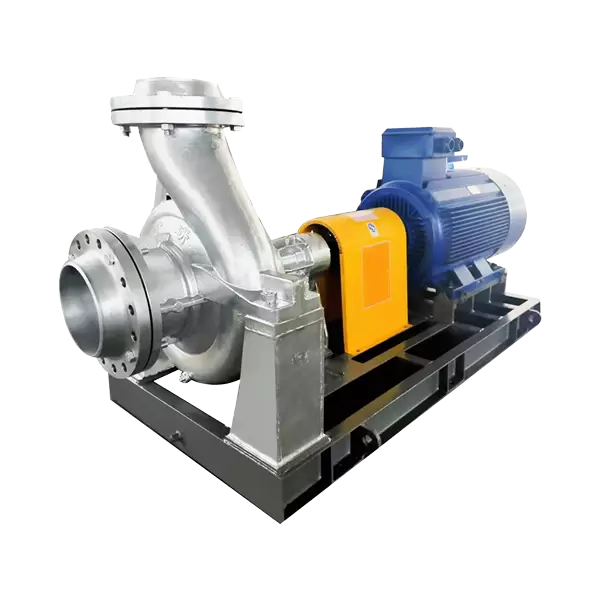

FDY high-efficiency hot oil pump belongs to single stage single suction cantilever structure. The transmission component adopts double end ball bearing heavy load design, which is used sliding bearing and rolling bearing. The sliding bearing is lubricated by the medium and the rolling bearing is lubricated by grease. The cooling adopts the self-cooling and heat dissipation, which can transmit 350℃ hot oil .
| DESIGN STANDARD | GB/T13008 |
|---|---|
| FLOW RATE | Up to 1200 m³/h |
| HEAD | Up to 96m |
| APPLIED TEMPERATURE | Up to 350℃ |
| MAX PRESSURE | 2.5Mpa |
| General Description | FDY pump is designed and manufactured according to GB/T13008 Standard. |
1. Transfer of heat transfer fluid.
2. Chemical plants and refineries.
3. Paper and sugar industries.
4. Food and pharmaceutical industries.
5. Leather industry.
6. Plastics and synthetic fiber industries.
7. Vulcanization and heating industry.
8. Textile industry
